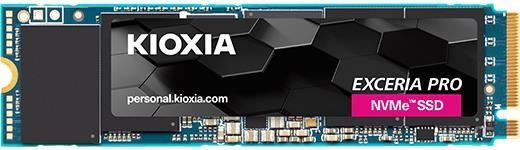

Kioxia SSD 2000GB EXCERIA PRO NVMe™ Series, M.2 2280

The all-new KIOXIA EXCERIA PRO SSD Series uses next generation technology to take your high-end computing and gaming into a new realm of possibilities. Leveraging PCI Express® 4.0 technology, this updated professional-class SSD series now offers up to 2TB of capacity well-suited for both high performance desktops and notebooks needing maximum speed.


Game-Changing Performance
Imagine up to 7,300 MB/s of sequential read speed(1) and up to 6,400 MB/s sequential write speed(1), and you have the KIOXIA EXCERIA PRO Series. Designed to reduce game loading, video editing and graphic rendering time, the EXCERIA PRO Series helps your content creation or gaming environment excel.

Small and Compact for an Easy Upgrade
Featuring a thin, single-sided M.2 2280 form factor, the EXCERIA PRO SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.

PCIe® 4.0 Technology
This “hero” class KIOXIA SSD delivers powerful performance utilizing the PCIe® 4.0 and NVMe™ 1.4 technology. EXCERIA PRO SSD series push the boundaries of flash storage technology, offering enhanced real-world performance that will blow away hardcore gamers and content creators.

Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.

SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring, SSD tuning and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.


Capacity: 1TB, 2TB
Form Factor: M.2 Type 2280-S2-M
Interface: PCI Express® Base Specification Revision 4.0 (PCIe®)
Flash Memory Type: BiCS FLASH™ TLC
Interface Maximum Speed: 64 GT/s (PCIe® Gen4 x4)
Dimension (Max: LxWxH): 80.15 x 22.15 x 2.23 mm / 8g
Interface Command: NVM Express™ Revision 1.4 command set
Operating Temperature: 0 °C (Ta) to 85 °C (Tc)
Storage Temperature: -40 °C to 85 °C
Shock Resistance: 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration: 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage: 3.3 V ±5 %
Power Consumption: PS3: 50 mW (typ.) / PS4: 5 mW (typ.)
Power Consumption (Active): 8.9 W (typ.)
Max Sequential Read Speed(1): 7,300 MB/s
Max Sequential Write Speed(1): 6,400 MB/s
Max Random Read Speed(2): 1TB: 1,000,000 IOPS / 2TB: 800,000 IOPS
Max Random Write Speed(2): 1TB: 1,100,000 IOPS / 2TB: 1,300,000 IOPS
Endurance: TBW(3): 1TB: 400 TB / 2TB: 800 TB
MTTF: 1.5 million hours

Compatibility
PCI Express: Compatible with PCI Express® Base Specification Revision 4.0 and NVM Express™ Revision 1.4 command set
Connector Type: M.2 M key Socket
Target Applications: Client desktops and laptops
