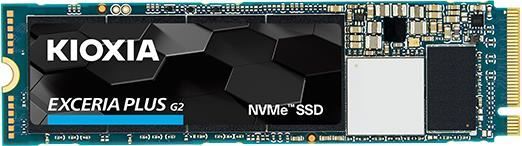

Kioxia SSD 500GB EXCERIA PLUS G2 NVMe™ Series, M.2 2280

Your high-performance gaming system needs high-performance storage. The KIOXIA EXCERIA PLUS G2 SSD series is built to deliver enthusiast-class PCIe® performance thanks to an 8-channel controller that brings out the full potential of its BiCS FLASH™ 3D flash memory. This new enthusiast-class SSD series offers up to 2TB of capacity in a M.2 2280 form factor suitable for both desktops and mobile PCs.

Game-Changing Storage
Don’t let your storage be outclassed. The KIOXIA EXCERIA PLUS G2 SSD series offer high performance storage for enthusiasts and hardcore gamers that feel held back by commodity storage hardware. With up to 3,400 MB/s sequential read speed(1) and 3,200 MB/s sequential write speed available to you, your system won’t be deprived of the storage bandwidth it needs to excel.

Game On!
Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe™ 1.3c technology, the EXCERIA PLUS G2 SSD series reduces latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Small and Mighty
Featuring a thin and light M.2 2280 form factor, the EXCERIA PLUS G2 SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker system.

Cutting Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.

SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring, SSD tuning and more!

SPECIFICATION
Capacity: 500GB, 1,000GB, 2,000GB
Form Factor: M.2 Type 2280-D3-M
Interface: PCI Express® Base Specification Revision 3.1a (PCIe®)
Flash Memory Type: BiCS FLASH™ TLC
Interface Maximum Speed: 32 GT/s (PCIe® Gen3x4L)
Dimension (Max: LxWxH): 80.15 x 22.15 x 3.73 mm / 10g
Interface Command: NVM Express™ Revision 1.3c command set
Max Sequential Read Speed: 3,400 MB/s
Max Sequential Write Speed: 3,200 MB/s
Max Random Read Speed: 500GB: 650,000 IOPS
1,000GB, 2,000GB: 680,000 IOPS
Max Random Write Speed: 500GB: 600,000 IOPS/ 1,000GB, 2,000GB: 620,000 IOPS
Endurance: TBW (Total Bytes Written): 500GB: 200 TB / 1,000GB: 400 TB /2,000GB: 800 TB
MTTF: 1.5 million hours
Operating Temperature: 0 °C (Ta) to 85 °C (Tc)
Storage Temperature: -40 °C to 85 °C
Shock Resistance: 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration: 196 m/s2 {20 G} Peak, 10~2000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage: 3.3 V ±5 %
Power Consumption: PS3: 50 mW (typ.): PS4: 5 mW (typ.)
Power Consumption (Active): 500GB: 6.7 W (typ.) / 1,000GB: 6.7 W (typ.) /2,000GB: 7.6 W (typ.)

Compatibility
PCI Express: Compatible with PCI Express® Base Specification Revision 3.1a and NVM Express™ Revision 1.3c command set
Connector Type: M.2 M key Socket
Target Applications: Client desktops and laptops

Performance Optimization: TRIM, Idle Time Garbage Collection
