PORT CONNECT Universal USB-C dokovací stanice 2× 4K, HDMI / DisplayPort

Universal USB-C docking station for expanding the connectivity of your notebook and connecting up to two external monitors in 4K resolution.
Availability: usually in 14 days
Brand:
PORT DESIGNS

Code/PN:
RP0729 / 901904V2EU

EAN:
3567042031586

Energy class:
Not specified

Warranty:
36 měsíců


Specification Photos GPSR EU Data Act


Universal USB-C docking station for expanding the connectivity of your notebook and connecting up to two external monitors in 4K resolution.

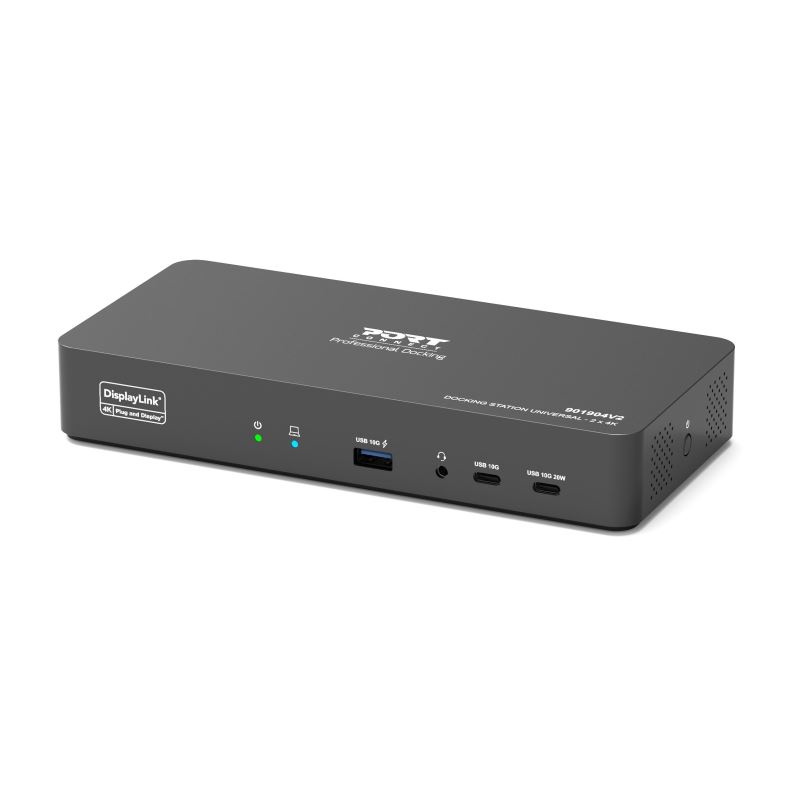

The universal USB-C docking station PORT is designed to significantly expand the connectivity of modern notebooks and mobile workstations.
It allows you to connect up to two external monitors in 4K resolution at 60 Hz and at the same time provides power, network connection and complete port equipment via a single USB-C cable.

The docking station supports DisplayLink™ technology and is compatible with Windows®, macOS® and ChromeOS™, ensuring universal deployment in office and IT environments.
Up to 96 W (Power Delivery™) power allows you to simultaneously charge your notebook and connected devices without the need for an additional power adapter.

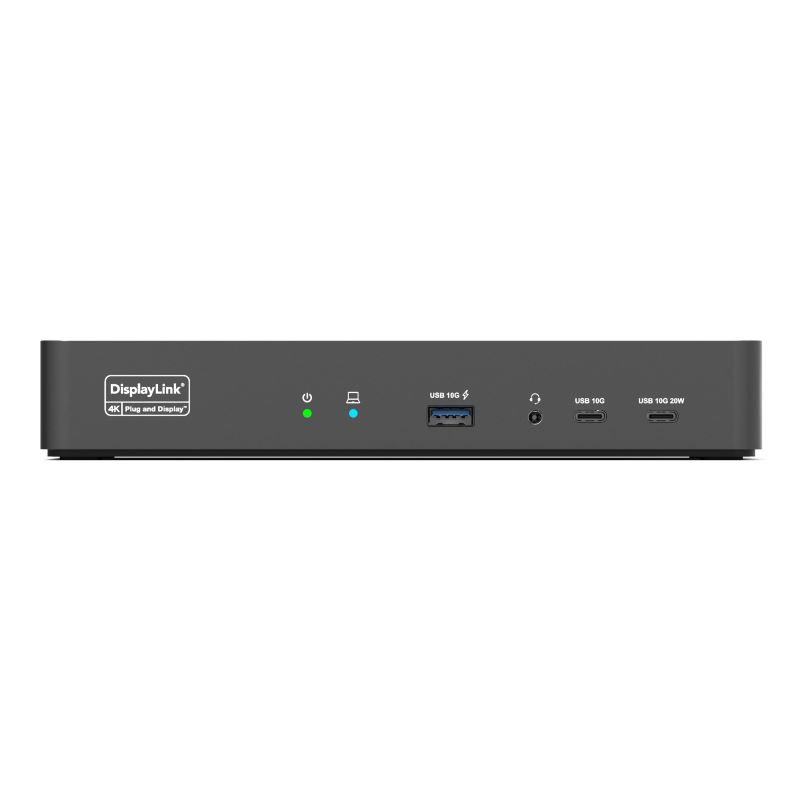

A wide range of connectors is available, including HDMI, DisplayPort, USB-A, USB-C, Ethernet and a combo audio jack.
An integrated ON/OFF button with smart power management helps reduce power consumption during idle time.

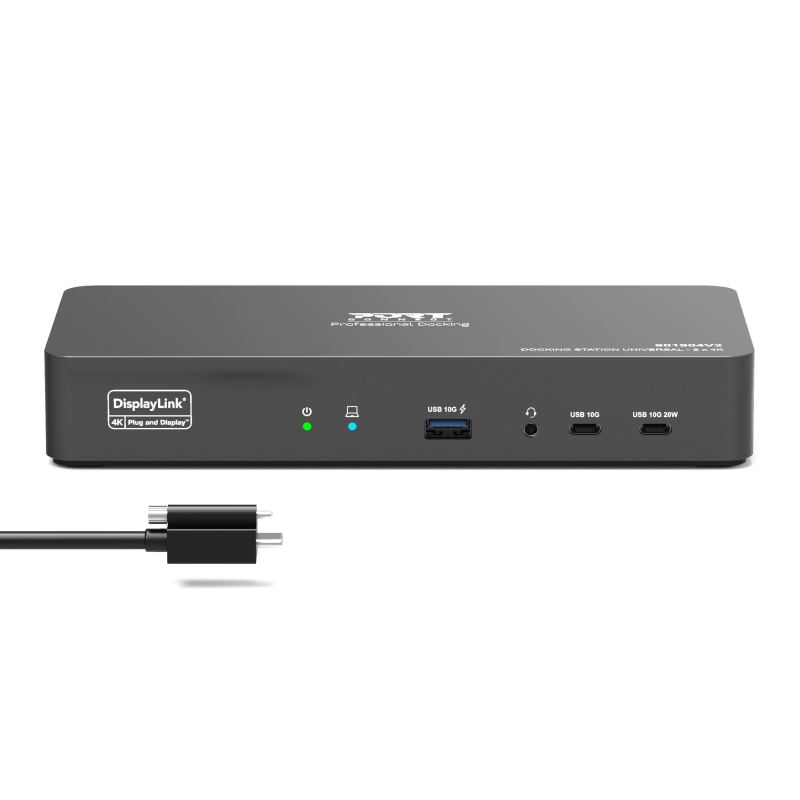

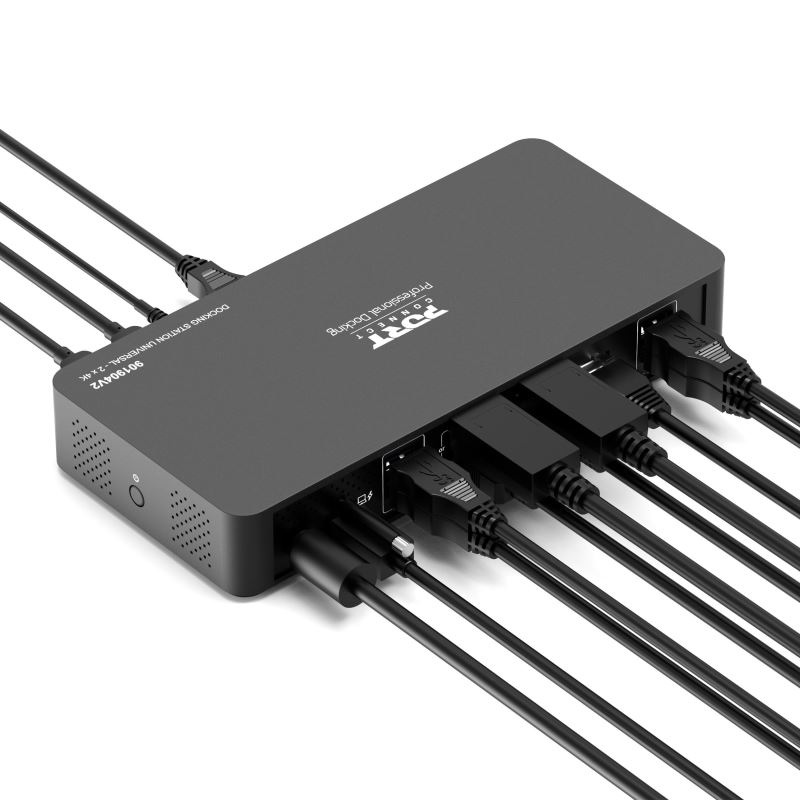

The docking station is equipped with a 1m USB-C cable with a screw mount for a solid and secure connection, an LED power indicator and an anti-theft security slot.
Support for PXE Boot and Wake-on-LAN enables remote management in corporate IT infrastructures.


  • Supports up to 2 external monitors at 4K @ 60 Hz
  • Power Delivery™ up to 96 W to power your laptop via USB-C

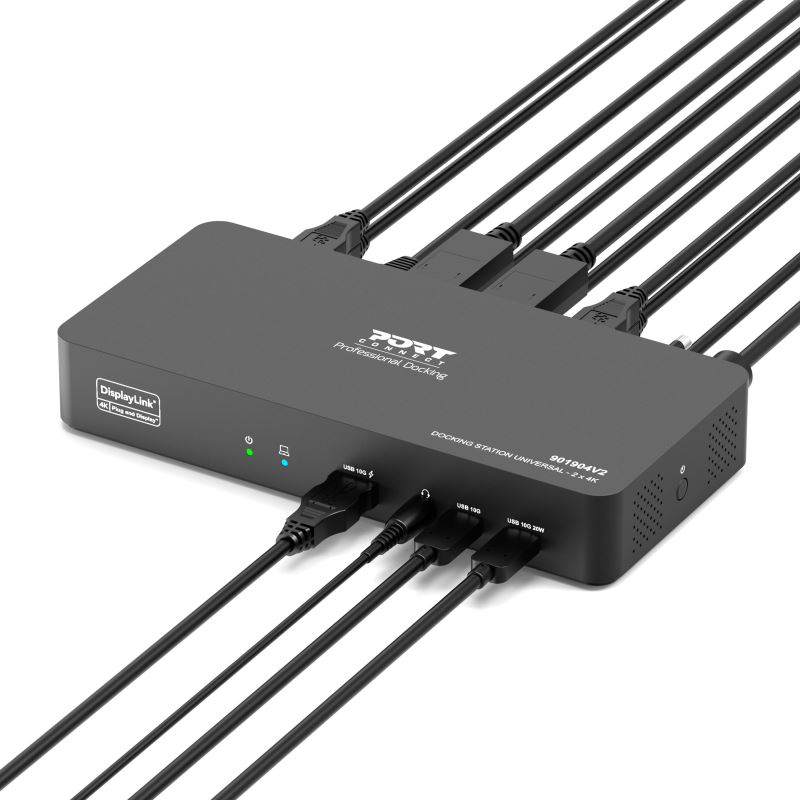

  • Connect up to 11 peripherals with a single cable
  • DisplayLink™ – advanced display options
  • Smart power management + ON/OFF button
  • Universal compatibility: Windows®, macOS®, ChromeOS™
  • USB-C cable 1 m with screw mount
  • PXE Boot & Wake-on-LAN support

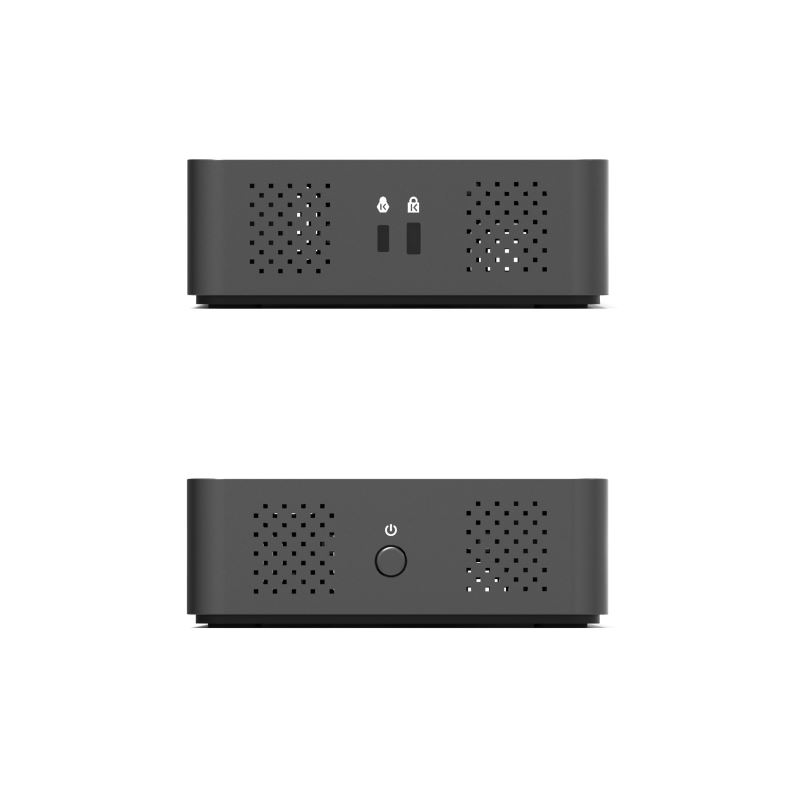

  • Integrated security slot
  • LED power indicator


TECHNICAL SPECIFICATIONS

Video output: up to 2× 4K @ 60 Hz
Video driver: DisplayLink™
Input: 20 V / 6.75 A
Output: 20 V / 5 A
USB-C cable length: 1 m
Material: ABS + PCBA

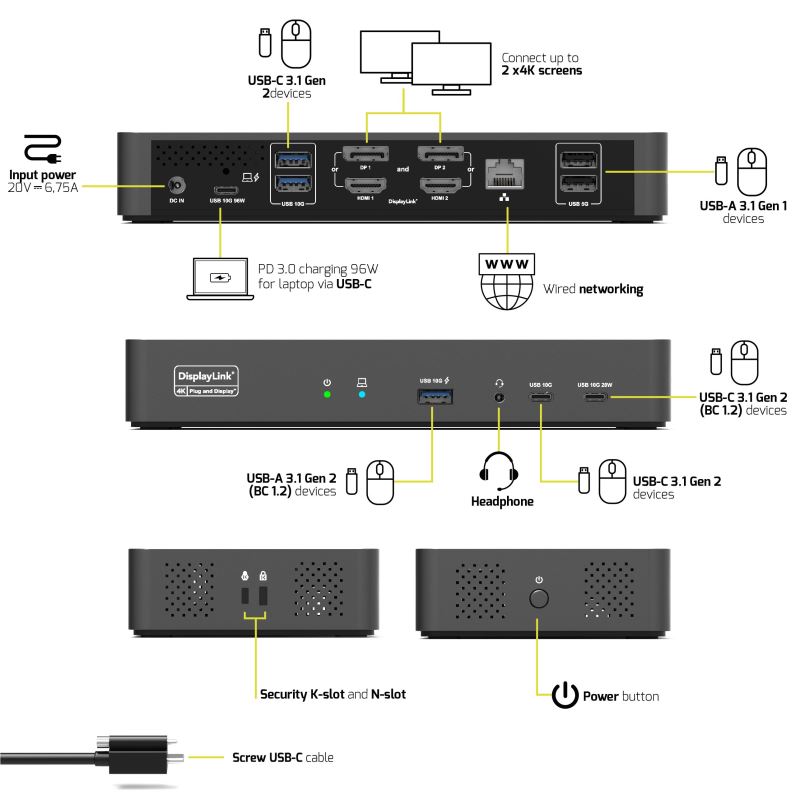

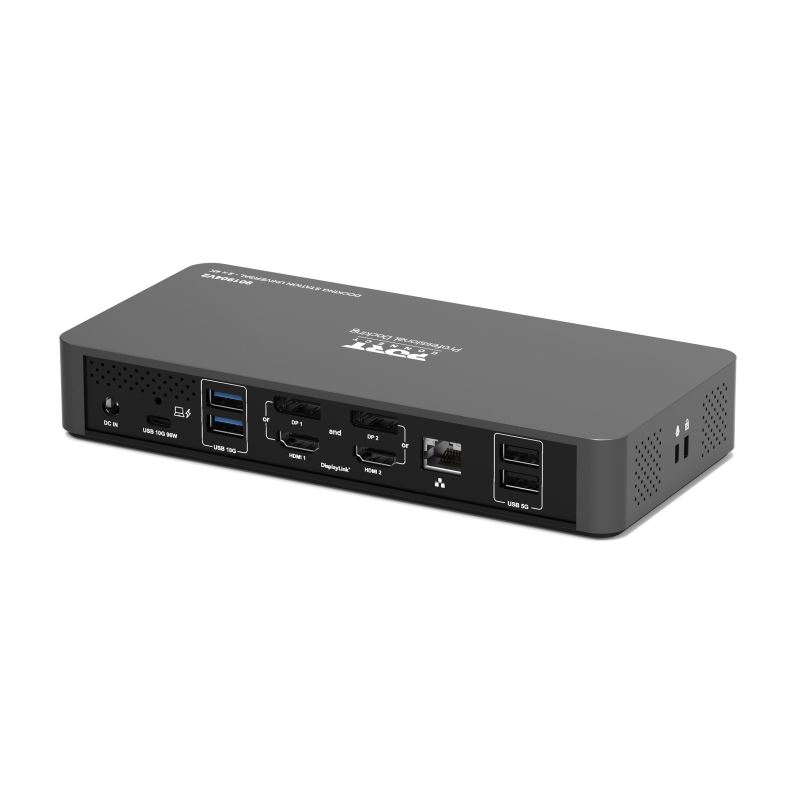

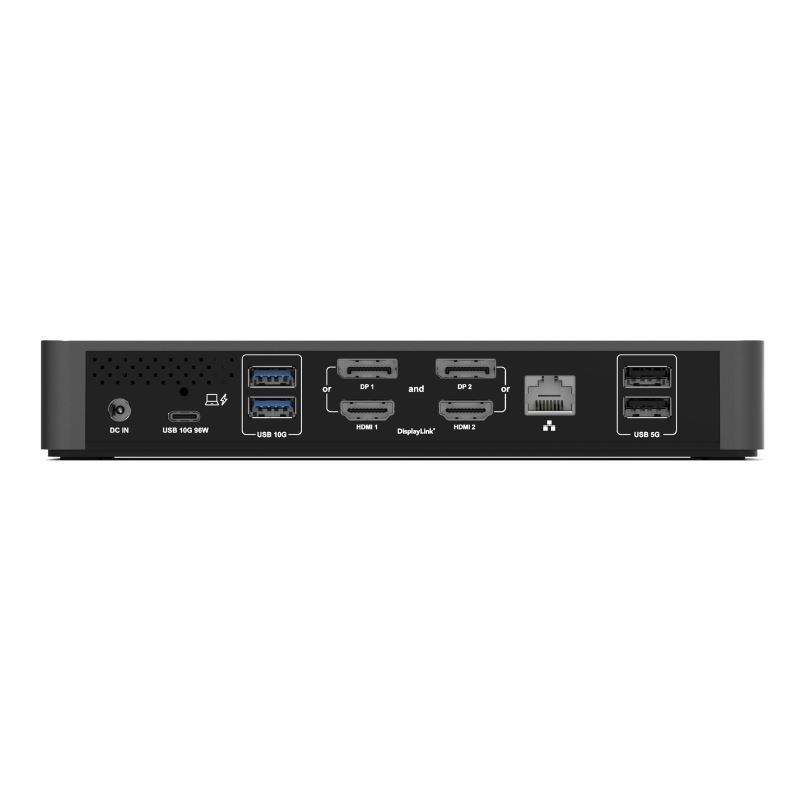

Connectivity

  • 2× DisplayPort
  • 2× HDMI
  • 1× RJ45 Ethernet (10/100/1000 Mbps)
  • 1× USB-C 3.1 Gen 2 Power Delivery (up to 96 W) - connect to a laptop
  • 3x USB-A 3.1 Gen 2 (10 Gbps), including 1x BC 1.2
  • 2x USB-A 3.1 Gen 1 (5 Gbps)
  • 2x USB-C 3.1 Gen 2 (10 Gbps), including 1x BC 1.2
  • 1x Combo Jack 3.5 mm


Compatibility

  • Devices with USB-C interface
  • Windows®, macOS® and ChromeOS™ operating systems


DIMENSIONS AND WEIGHT

  • Product dimensions: 20.3 x 9.5 x 3.4 cm
  • Product weight: 1.1 kg
  • Package dimensions: 13.1 x 25.5 x 8.8 cm
  • Package weight: 1.24 kg


PACKAGE CONTENTS

  • USB-C 2x4K docking station
  • USB-C - USB-C screw cable
  • Power adapter 135W
  • User Manual
Manufacturer/Importer into the EU:
PORT EUROPE SAS
7A RUE DE CHERBOURG
67100 STRASBOURG
FR
https://portdesigns.com/
contact@portdesigns.com
This product does not generate any data.
